The
Tasman XL
A Tiny Home with Style
The Tasman Tiny Home is designed for the family in mind, but it also lends itself well as an Airbnb. The main selling point of the Tasman is the wide Stacker Doors and larger living room space with a desk and fitted custom storage couches (which convert to a double bed). Upstairs boasts a two mezzanine levels.
The Tasman Tiny House kitchen is well laid out with barn door, leaving space for storage in the wall space. There is space for a full-size fridge and plenty of storage under the stairs to the mezzanine level. The lounge area is fitted out with custom storage couches that wrap around the room.
The Tasman XL is 9m long, 3.4m wide. It can be moved with a low loader truck.
As with all our Tiny Home designs, we have never made the same model twice, as our clients add, change and modify the layout they like the best to create their perfect dream Tiny Home.
Purchase Options
Price on application
Specifications

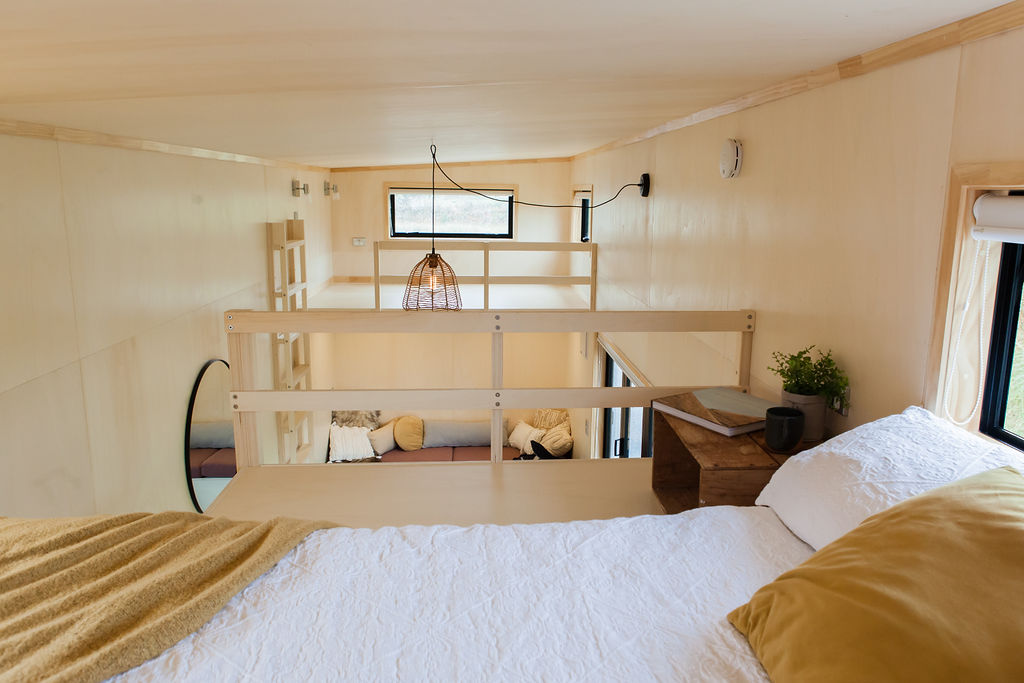

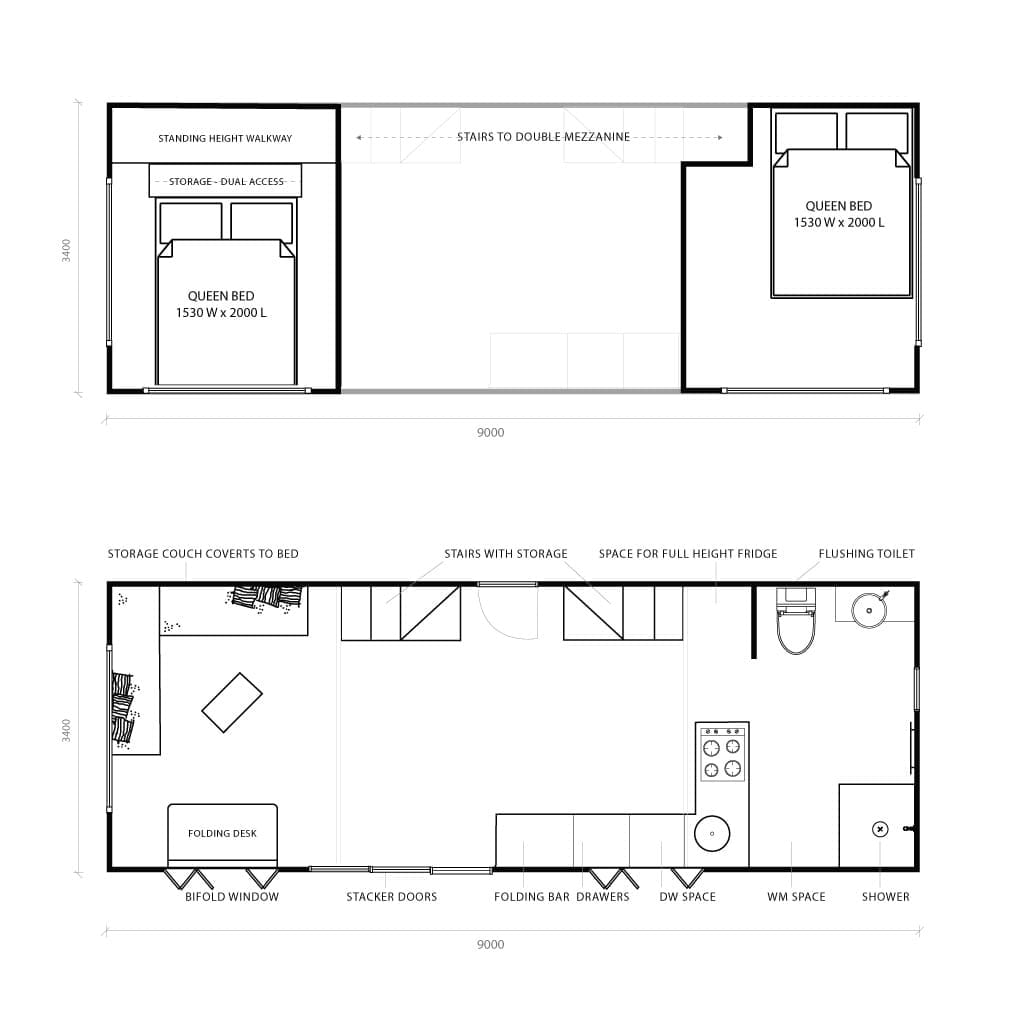

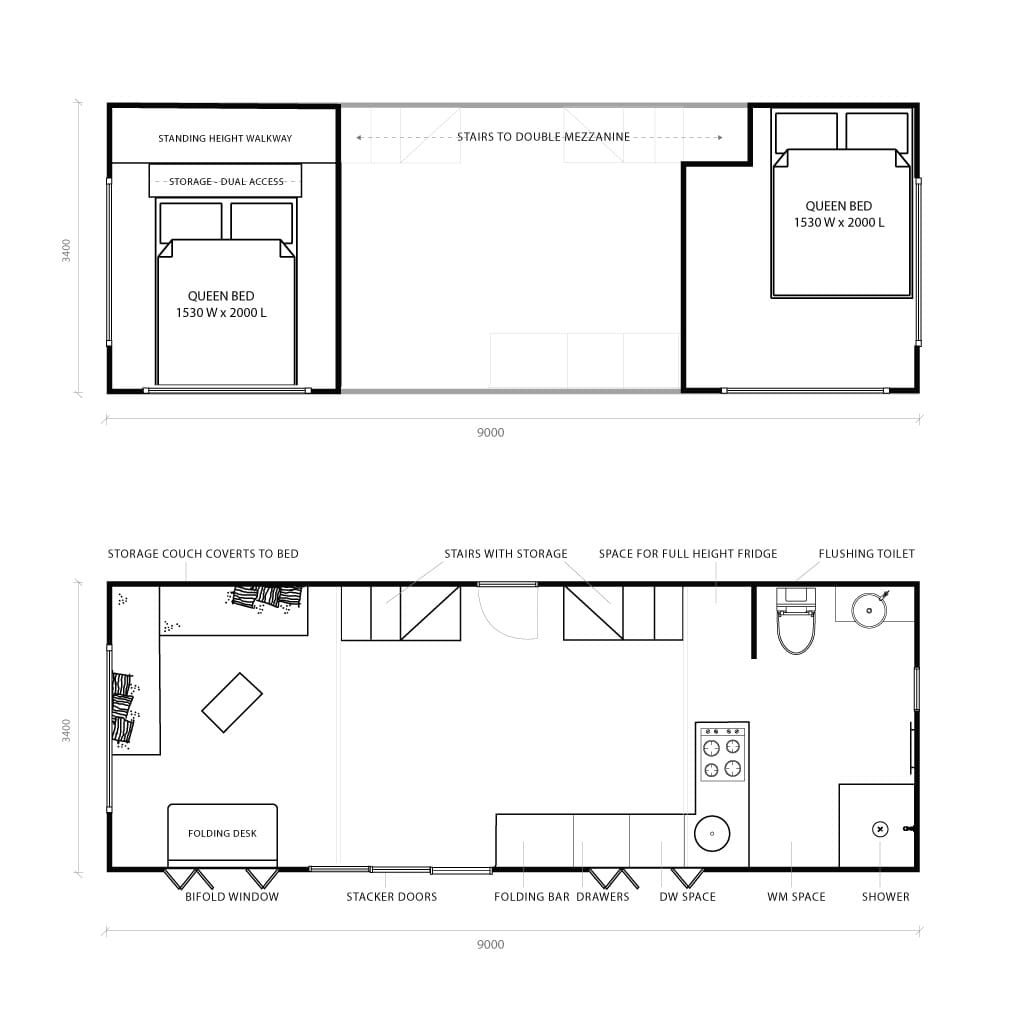

Size - 45m2, 9m x 3.4m, footprint; roof height 3.5m internal to apex, 4.2m external to apex. Two Mezzanine areas of 3.1m x 2.5m, with 2m clearance below. Effective floor area of 45m2, including mezzanines.
Flooring
Timber style vinyl sheet, various colour choices available. 10 year warranty.
Joinery
Brand new, double-glazed, made by Origin Windows.
Guttering and Spouting
Colour-matched Marley Stormcloud guttering system, featuring over-sized 80mm downspout.
Electrical
8x double outlets, LED recessed and pendent interior downlights, and exterior light with motion sensor. RCD protected and 'caravan connection' . Comes with individual Certificate of Compliance and Electrical Warrant of Fitness (EWOF).
Alarms
Carbon Monoxide Alarm and 10 Year Photoelectric Smoke Alarm.
Kitchen
Kitchen made in house from high end Birch clear finished ply as standard, built in Rangehood, custom Benchtops, three sets of cupboards, one set of draws, wall shelves, stainless steel sink, mixer tap, two power outlets.
Delivery
Can be delivered anywhere on the North or South Island.
Construction
All our Tiny Houses are designed from full 90mm galvanised steel framing which will not warp, hold moisture or rot. Its stronger and lighter than timber framing and unlike timber, is completely recyclable.
Trailer
Hot dipped galvanised, removable drawbar as standard. Twin or triple axle trailer, built in corner house jacks, spare wheel, registered, and 3-year Warrant of Fitness.
Roofing
Coloursteel, trapezoid profile.
Cladding
Our standard is Coloursteel corrugate profile, vertically fixed, but we can offer a range of cladding.
Exterior Fixings
Stainless steel or galvanized as required.
Bathroom
Shower with showerdome to keep steam in, flushing toilet (other toilet options available) vanity, mirror, power outlet, powered vent to outside.
Hot Water
16L Rheem LPG Gas Califont on demand hot water heater. All plumbing installed by a licenced plumber.
Builders
Built by a team lead by Adam Fox, NZ Licenced Building Practitioner.
For a similar Tiny Home to the Tasman check out the Denali Tiny Home. If you are looking for something more cost effective try out the Snowdon Tiny Home.
Talk to us about a custom design. Because every Tiny House is custom made to your specifications, we can adapt colours, windows, doors, interior linings, flooring, create off grid, and much more.
Contact our team now on 07-788-0101 or by using our contact form.
